Monitor Series

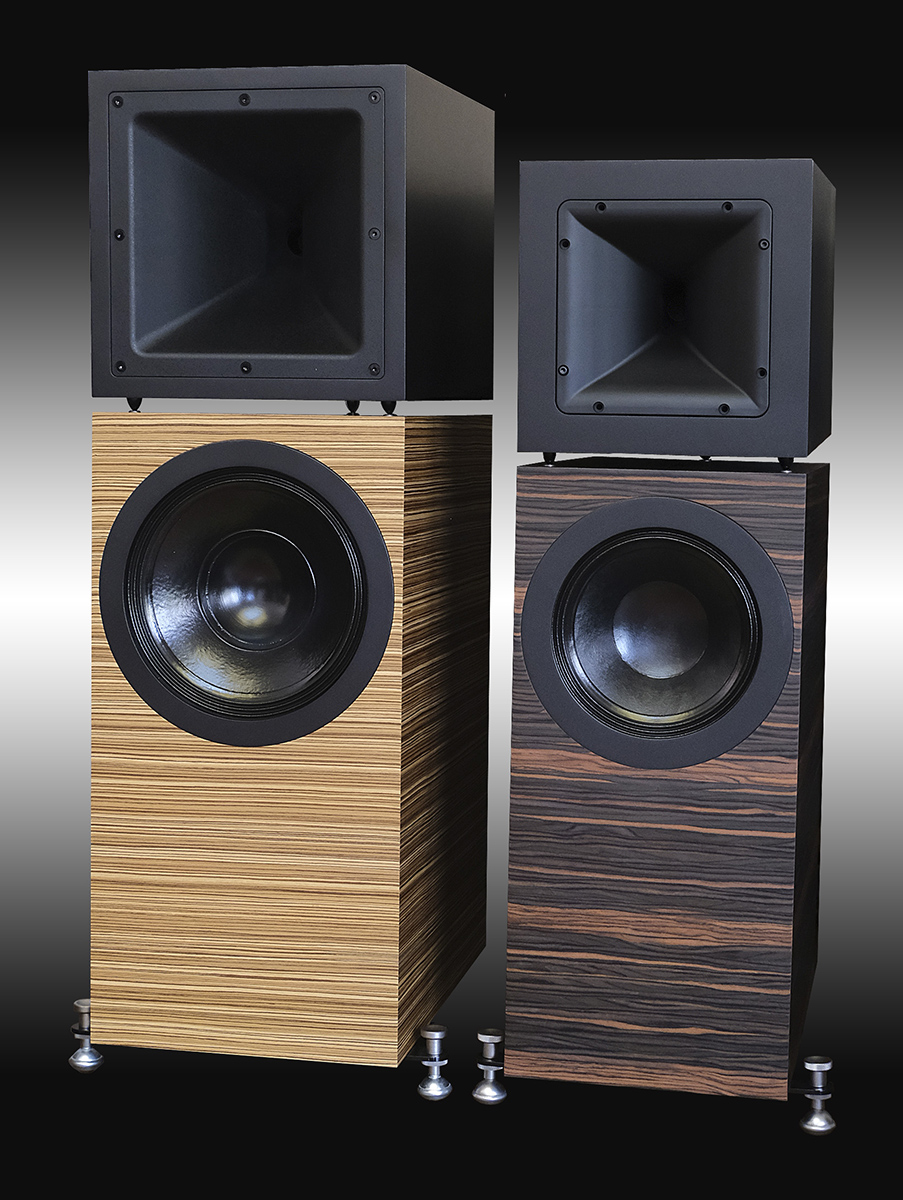

Monitor 10 + Monitor 12

tl_files/dynamikks/Monitorserie/New Monitor series/Monitor 10 + 12 gespiegelt SW.jpg

Monitor 10 in Makassar
102cm x 30cm x 47cm

Monitor 12 in Zingana
112cm x 35cm x 50



tl_files/dynamikks/Monitorserie/New Monitor series/SW Collage.jpg

Monitor 12 in Dark Santos Palisander

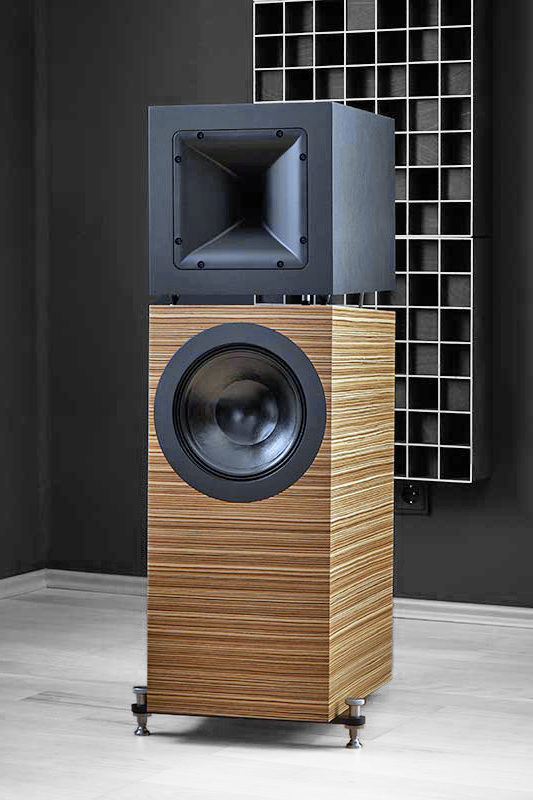

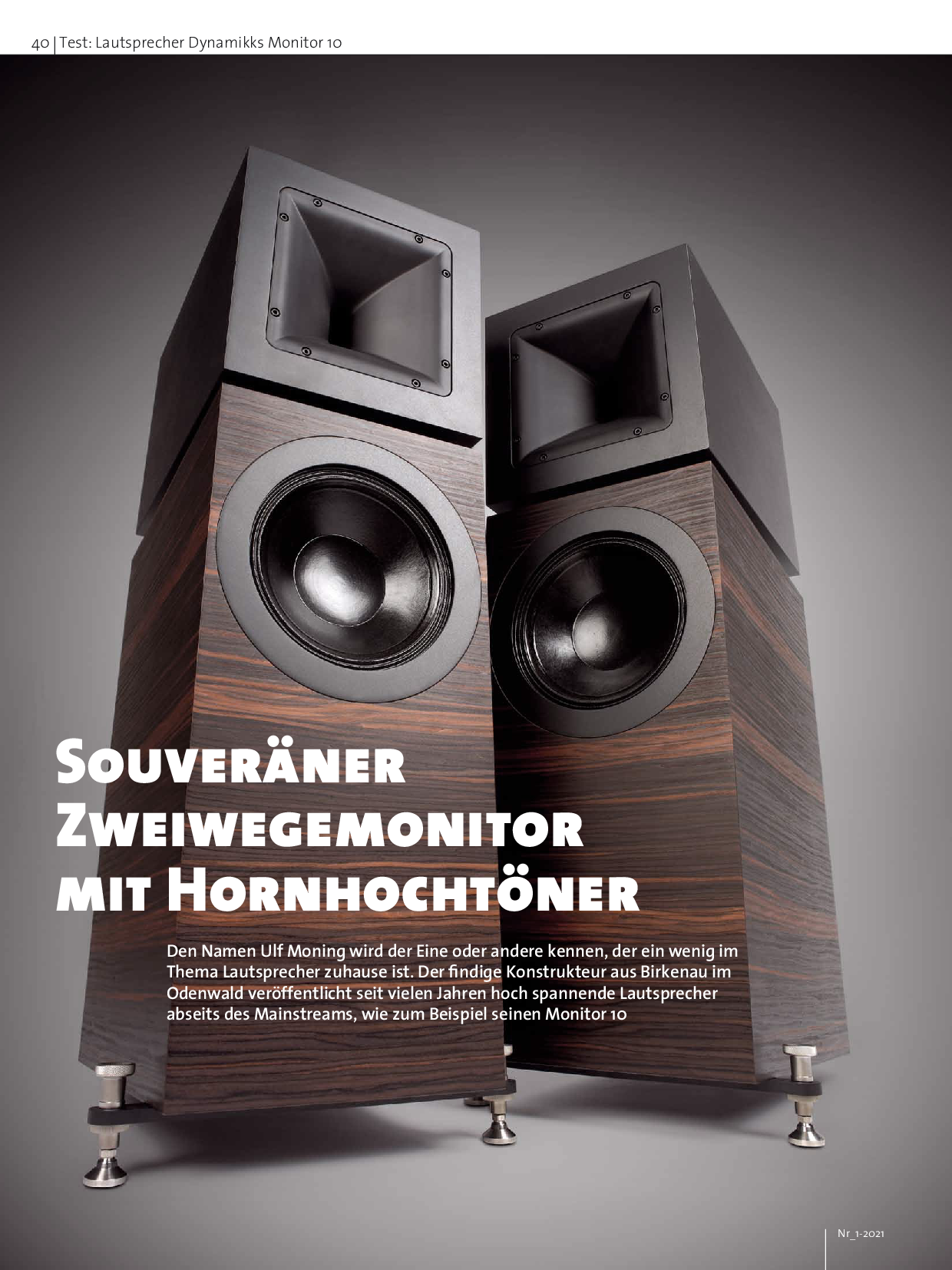

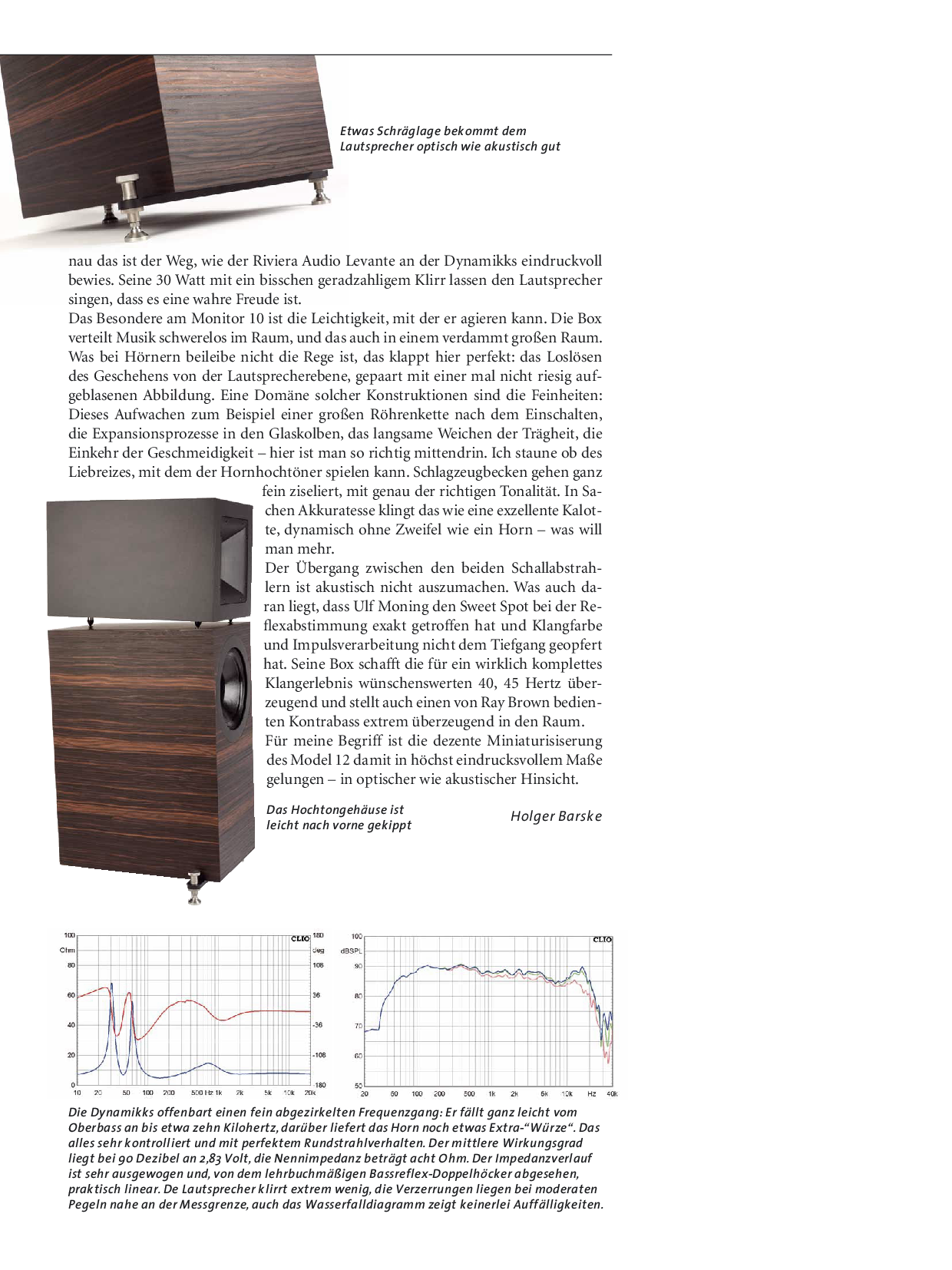

  Monitor 10

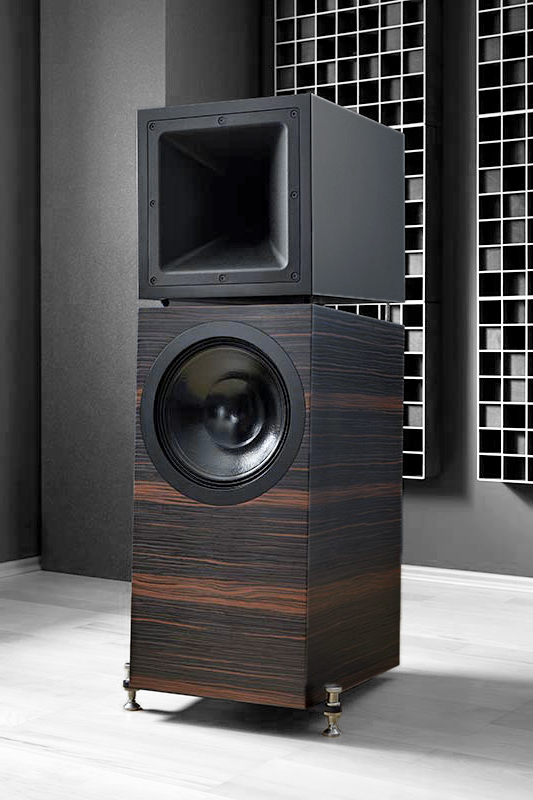

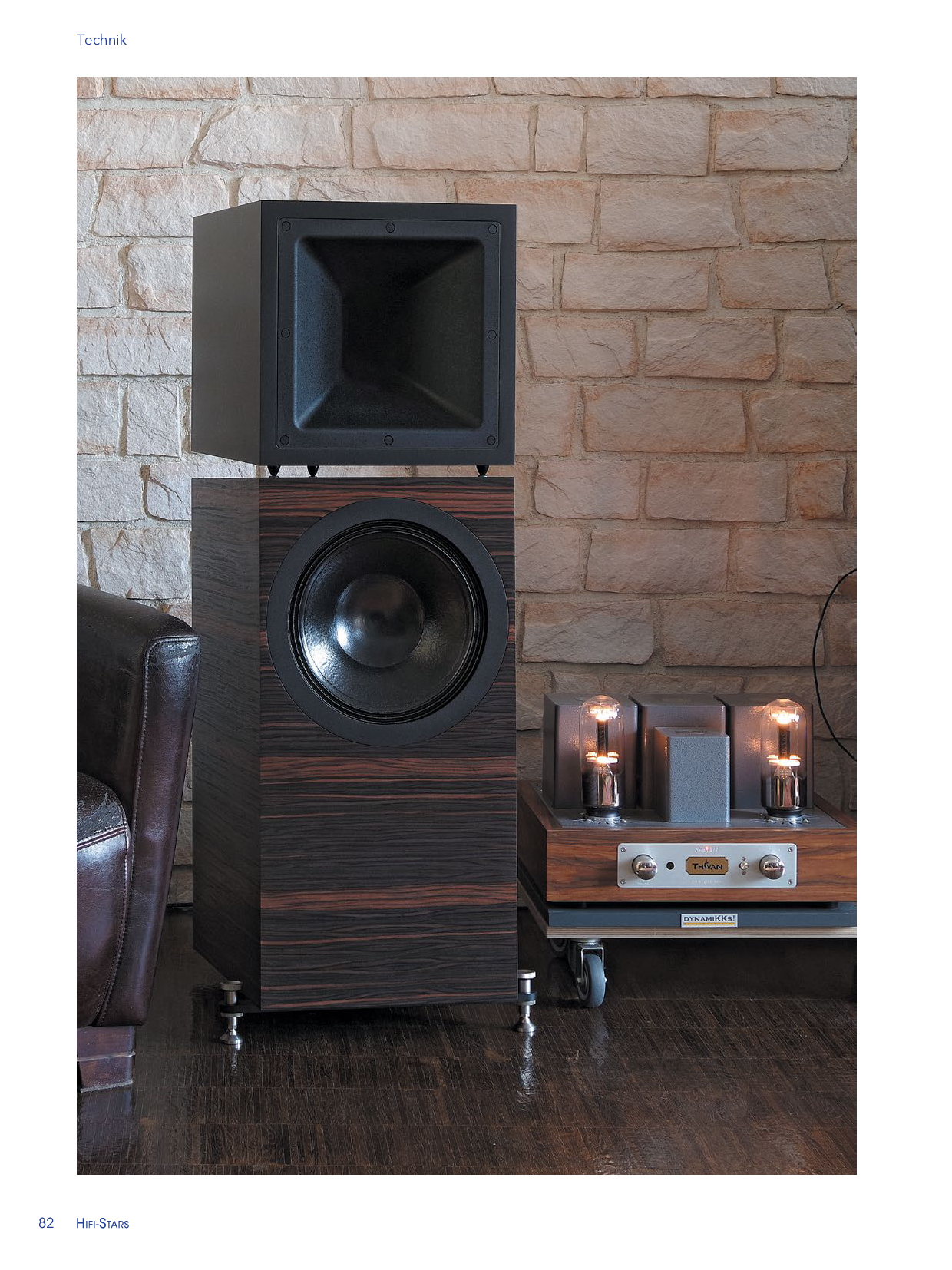

[Monitor 12
Design principle:

passive 2-Way Speaker,
horn and bass reflex loaded

passive 2-Way Speaker,
horn and bass reflex loaded


Drive units:

22x22cm Horn, 1" Compression Driver
Crossover at 950Hz
10" Woofer

30x30cm Horn, 1" Compression Driver
Crossover at 750Hz
12" Woofer

Efficiency: 91dB @1W/1m 93dB @1W/1m
Impedance: 8 Ohm 8 Ohm
Frequency range(-3dB) 38Hz / 20khz 35Hz / 20khz
Internal wiring: DynamiKKs! SpeakerLink DynamiKKs! SpeakerLink
Connectors: WBT Nextgen WBT Nextgen
Dimensions (H/B/T) in cm: 102/30/47 112/35/50
Net Weight:  kg  kg
